Bites of Compose 12

Use LayoutModifier to implement padding

Guowei Lv

2 minute read

LayoutModifier is a very important type of Modifier in Compose. It can decorate its component’s layout. So let’s get an idea of what this means by implementing padding using it.

Let’s try to add a 10dp padding around a Text.

class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        setContent {
            LayoutModifierPadding()
        }
    }
}

@Composable
fun LayoutModifierPadding() {
    Box(
        modifier = Modifier
            .size(100.dp)
            .background(Color.LightGray)
    ) {
        Text(
            "Hello!",
            modifier = Modifier
                .background(Color.Yellow)
                .layout { measurable, constraints ->
                    Log.d("test", "The parent Box wants the Text to be:")
                    Log.d(
                        "test",
                        "maxWidth: ${constraints.maxWidth}, maxHeight: ${constraints.maxHeight}"
                    )
                    val padding = 10.dp.roundToPx()

                    val newMaxWidth = constraints.maxWidth - padding * 2
                    val newMaxHeight = constraints.maxHeight - padding * 2

                    Log.d(
                        "test",
                        "But since we are trying to fit in a padding around it, the Text needs to be within:"
                    )
                    Log.d("test", "maxWidth: $newMaxWidth, maxHeight: $newMaxHeight")

                    val newConstraints = constraints.copy(
                        maxWidth = newMaxWidth,
                        maxHeight = newMaxHeight
                    )
                    Log.d("test", "Measure the Text with this new Constraint:")
                    val placeable = measurable.measure(newConstraints)
                    Log.d(
                        "test",
                        "The width and the height of the actual Text are: ${placeable.width}, ${placeable.height}"
                    )
                    val layoutWidth = placeable.width + padding * 2
                    val layoutHeight = placeable.height + padding * 2
                    Log.d(
                        "test",
                        "We then need to add the padding to them to get the final width and height of the new layout created by this modifier: $layoutWidth, $layoutHeight"
                    )

                    layout(layoutWidth, layoutHeight) {
                        Log.d(
                            "test",
                            "We then need to place the actual Text in the center shifted by padding from left and top"
                        )
                        placeable.placeRelative(padding, padding)
                    }
                }
                .background(Color.Green))

    }
}

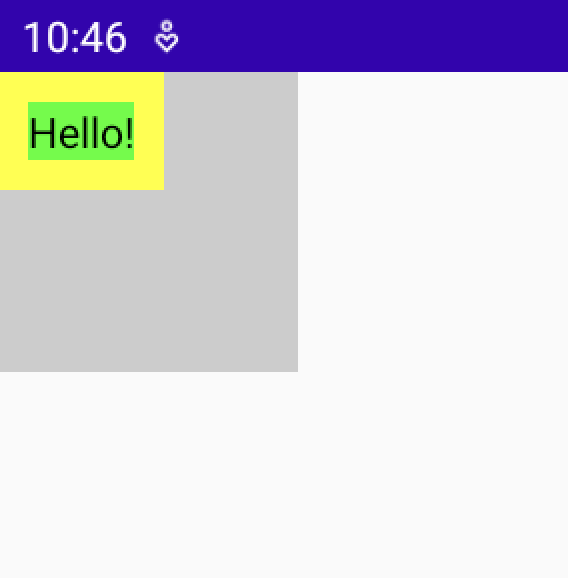

The code is heavily commented and the logs are explaining everything.

The parent Box wants the Text to be:
maxWidth: 150, maxHeight: 150

But since we are trying to fit in a padding around it, the Text needs to be within:
maxWidth: 120, maxHeight: 120

Measure the Text with this new Constraint:
The width and the height of the actual Text are: 53, 29

We then need to add the padding to them to get the final width and height of the new layout created by this modifier: 83, 59

We then need to place the actual Text in the center shifted by padding from left and top
