Android Custom View 102 (Part 17)

Using camera in canvas transformations

Guowei Lv

2 minute read

Let’s look at how to use camera in canvas transformation.

First this is what we want to implement:

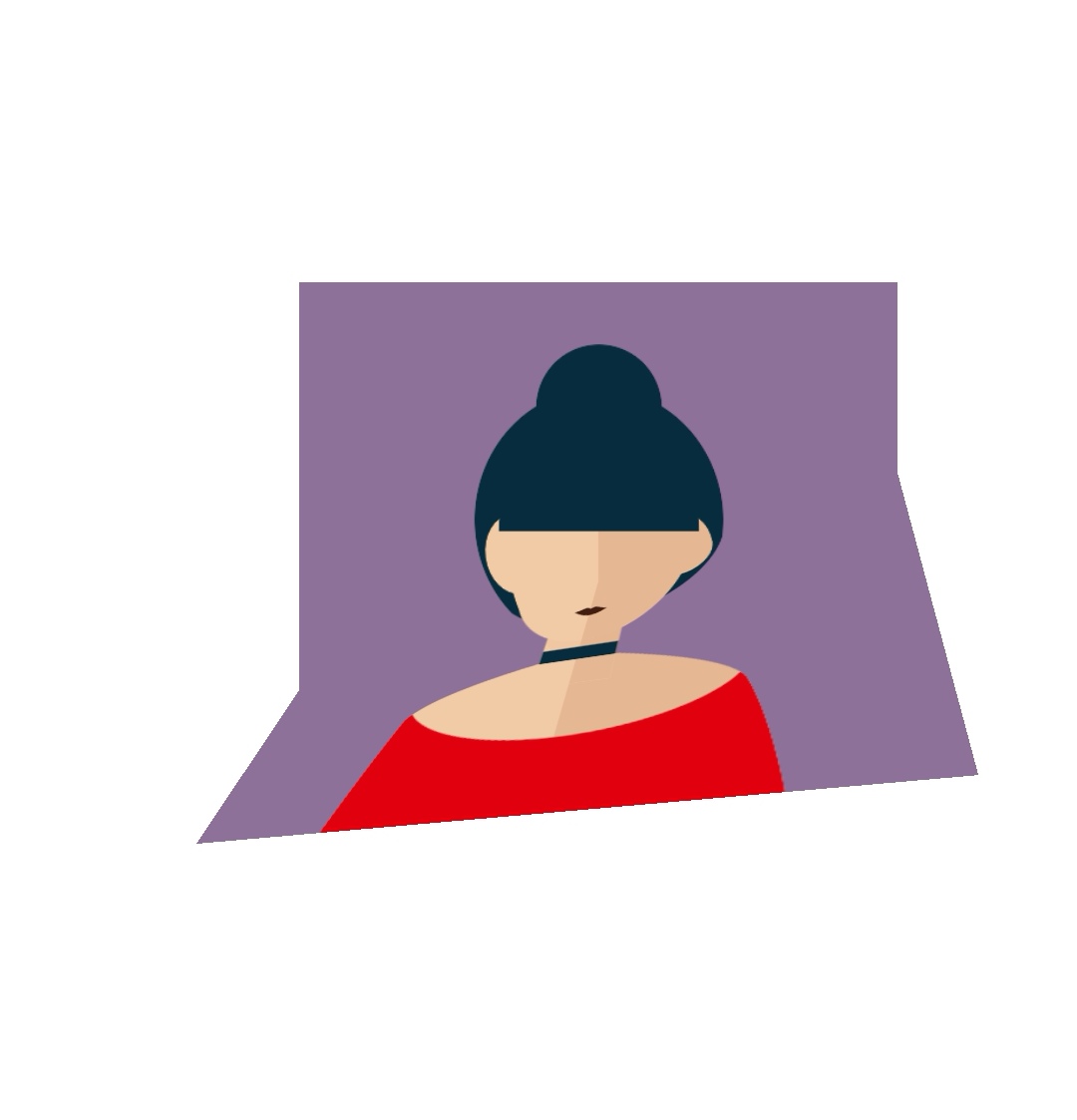

Camera View

The trick is to draw the upper and lower part separately. And we are using this “reverse drawing” technique.

Upper part

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.save()
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
    canvas.restore()
    }

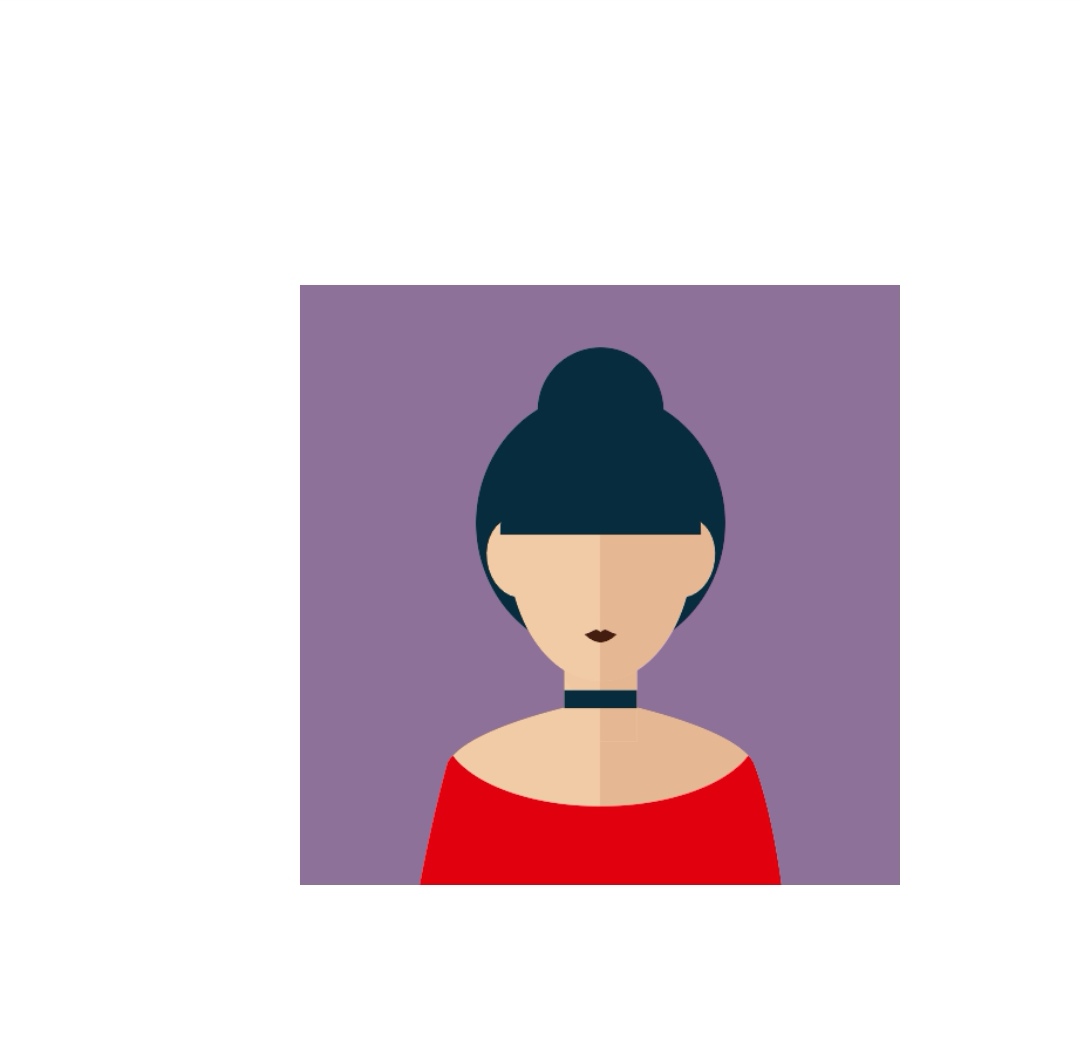

Camera View

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.save()
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
    canvas.restore()
}

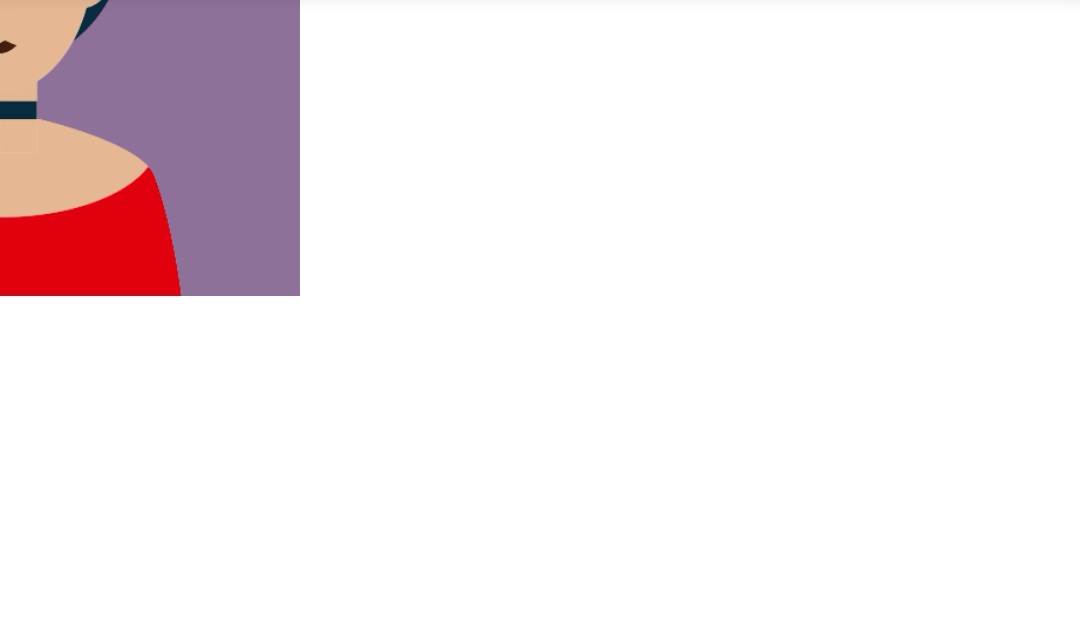

Camera View

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.save()
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
    canvas.restore()
}

Camera View

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.save()
    canvas.clipRect(-imageSize, -imageSize, imageSize, 0.0f)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
    canvas.restore()
}

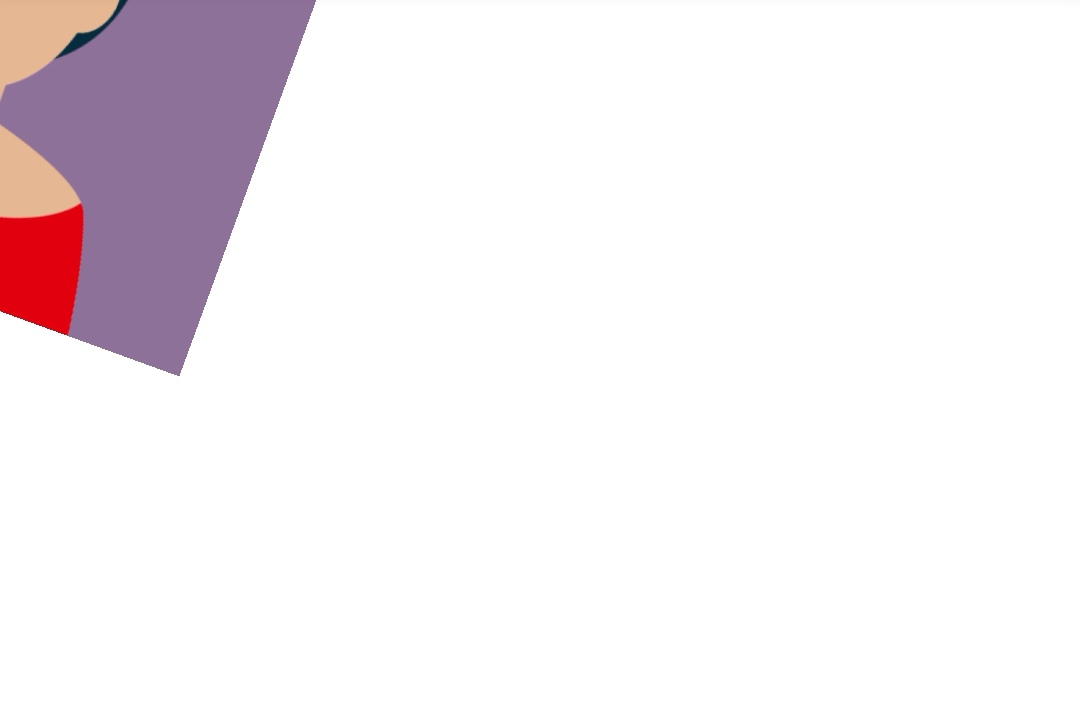

Camera View

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.save()
    canvas.rotate(-foldDegree)
    canvas.clipRect(-imageSize, -imageSize, imageSize, 0.0f)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
    canvas.restore()
}

Camera View

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.save()
    canvas.translate(leftPadding + imageSize / 2, topPadding + imageSize / 2)
    canvas.rotate(-foldDegree)
    canvas.clipRect(-imageSize, -imageSize, imageSize, 0.0f)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
    canvas.restore()
}

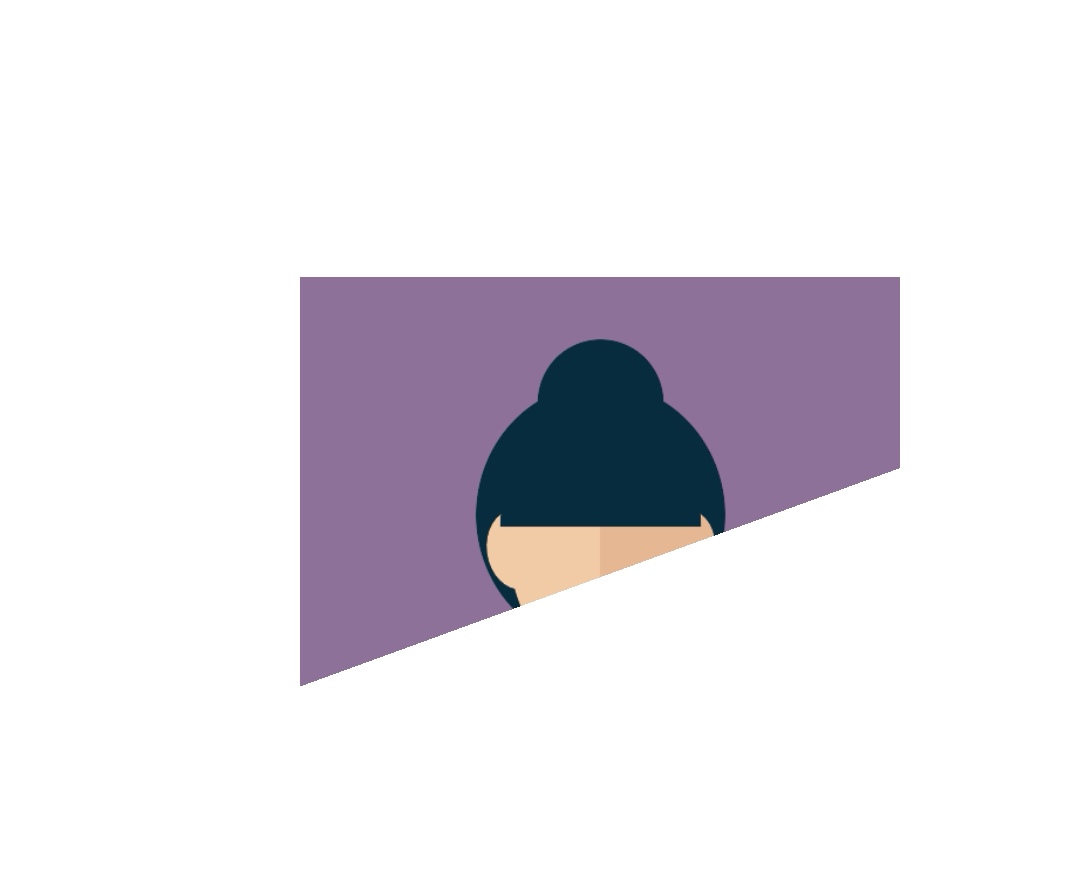

Camera View

Lower part

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.clipRect(-imageSize, 0.0f, imageSize, imageSize)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
}

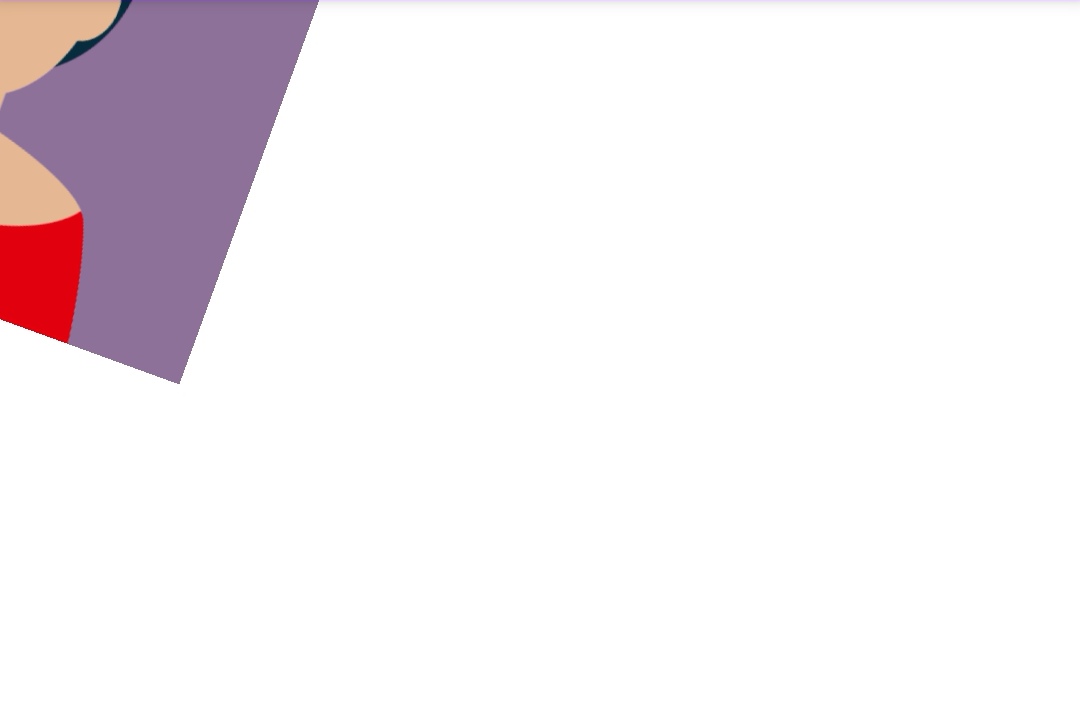

Camera View

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    camera.applyToCanvas(canvas)
    canvas.clipRect(-imageSize, 0.0f, imageSize, imageSize)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
}

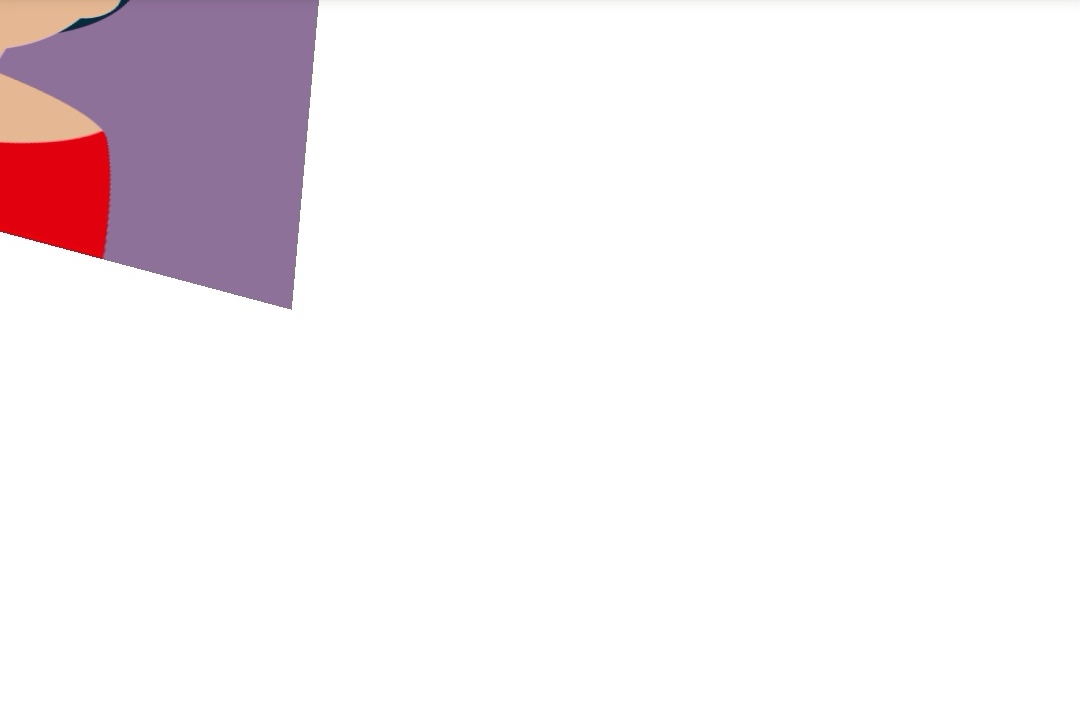

Camera View

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.rotate(-foldDegree)
    camera.applyToCanvas(canvas)
    canvas.clipRect(-imageSize, 0.0f, imageSize, imageSize)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
}

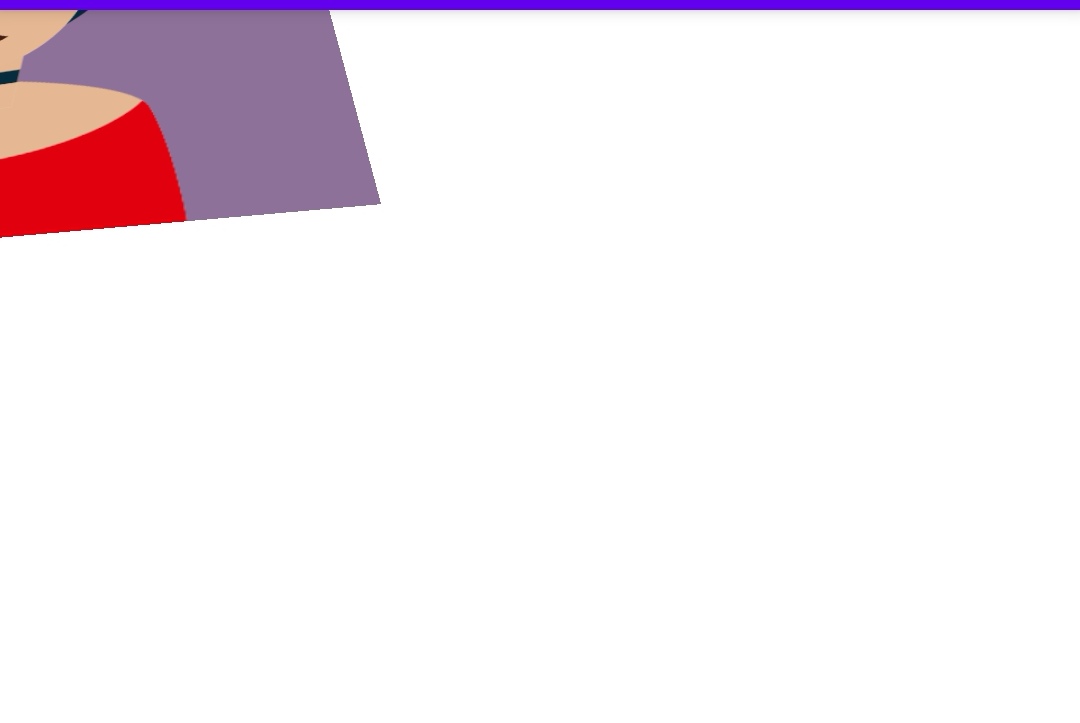

Camera View

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.translate(leftPadding + imageSize / 2, topPadding + imageSize / 2)
    canvas.rotate(-foldDegree)
    camera.applyToCanvas(canvas)
    canvas.clipRect(-imageSize, 0.0f, imageSize, imageSize)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
}

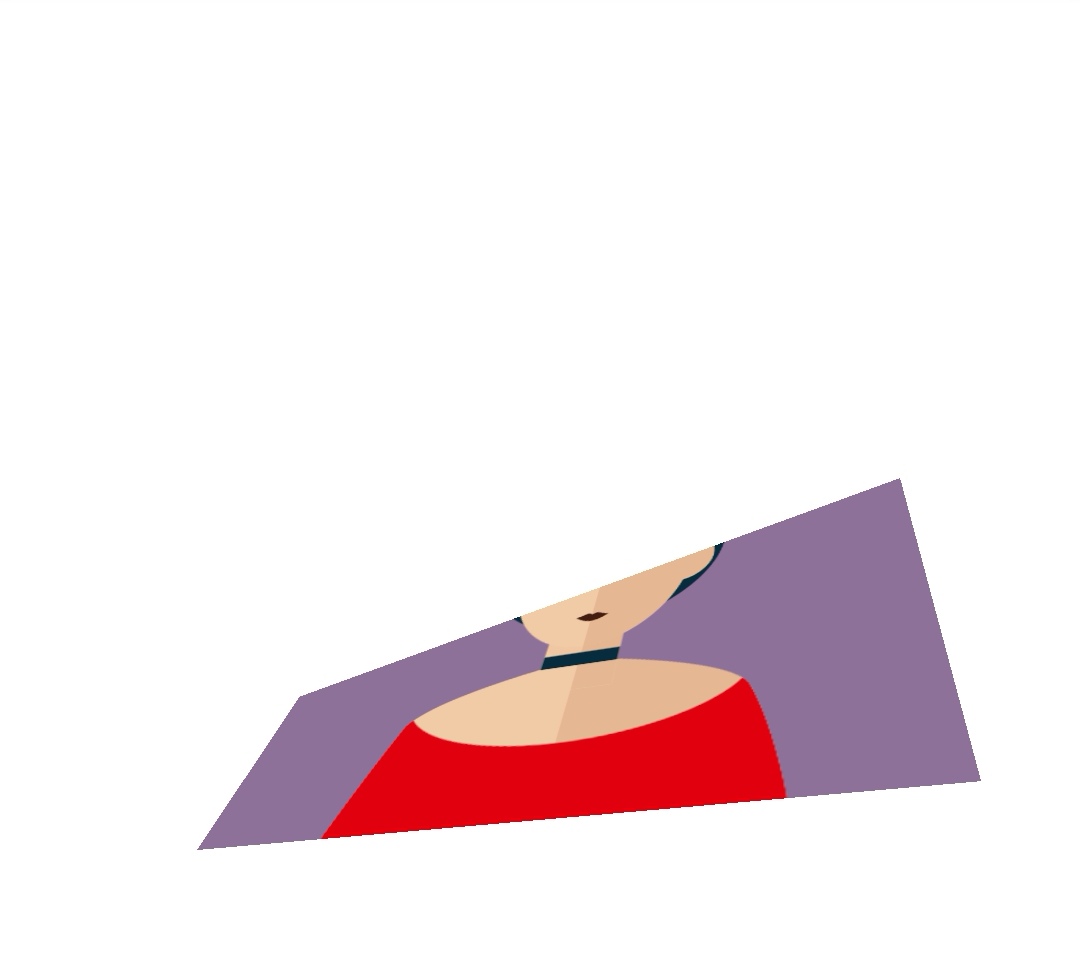

Camera View

Complete code

override fun onDraw(canvas: Canvas) {
    super.onDraw(canvas)

    canvas.save()
    canvas.translate(leftPadding + imageSize / 2, topPadding + imageSize / 2)
    canvas.rotate(-foldDegree)
    canvas.clipRect(-imageSize, -imageSize, imageSize, 0.0f)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
    canvas.restore()

    canvas.translate(leftPadding + imageSize / 2, topPadding + imageSize / 2)
    canvas.rotate(-foldDegree)
    camera.applyToCanvas(canvas)
    canvas.clipRect(-imageSize, 0.0f, imageSize, imageSize)
    canvas.rotate(foldDegree)
    canvas.translate(-(leftPadding + imageSize / 2), -(topPadding + imageSize / 2))
    canvas.drawBitmap(image, leftPadding, topPadding, paint)
}
